Defect Photo Gallery
The following photo gallery displays defects commonly found on railroad passenger equipment. To enlarge photos, please click on thumbnails.
View fullsize

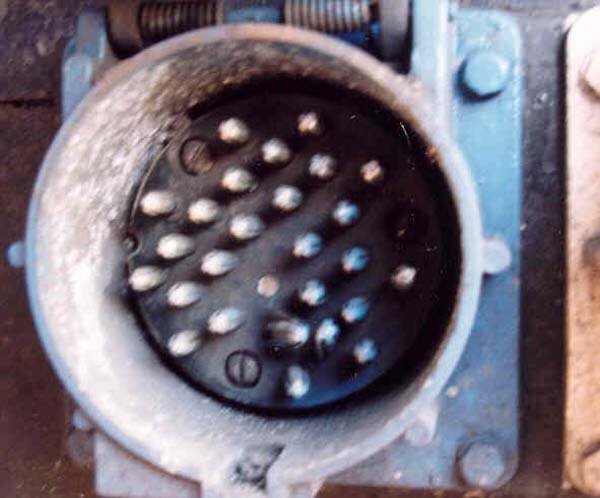

Defective HEP cable
View fullsize
Defective HEP cable
View fullsize
Defective HEP cables
View fullsize
Budd heater mount crack
View fullsize
Budd side sill crack
View fullsize
Budd welded grab iron crack
View fullsize
Aluminum corrosion in collision post
View fullsize
Bad bolster anchor shims and loose rubber
View fullsize
Defective disc brake rotor
View fullsize
Bad flange
View fullsize
Bad profile & flange
View fullsize
Defective shock absorber rubbers
View fullsize
Defective & bent communication line pins
View fullsize
Bent & tilted anchor bolster rod
View fullsize
Bent & worn cut lever & eye
View fullsize
Bent draft gear shim
View fullsize
Blown out HEP can
View fullsize
Bolster hitting truck frame
View fullsize
Box too low in jaw
View fullsize

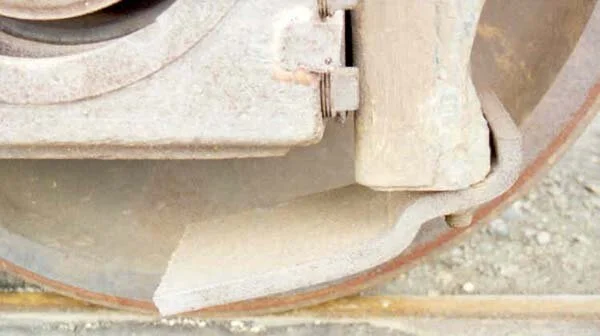

Brake head cutting into wheel
View fullsize
Brake head cutting into wheel
View fullsize
Broken brake head bushing
View fullsize
Broken center sill in coupler pocket
View fullsize
Broken coil spring
View fullsize
Broken H coupler
View fullsize
Broken equalizer seat
View fullsize
Buckled buffer plate
View fullsize
Corrosion under Pullman stainless fluting
View fullsize
Cracked casting and brkt on carrier casting
View fullsize

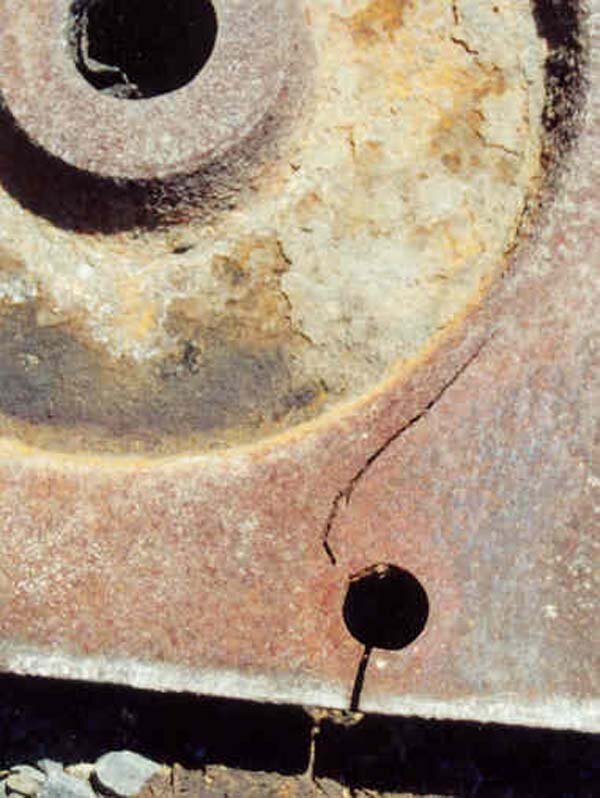

Cracked center plate
View fullsize
Cracked ellip bolster spring band
View fullsize

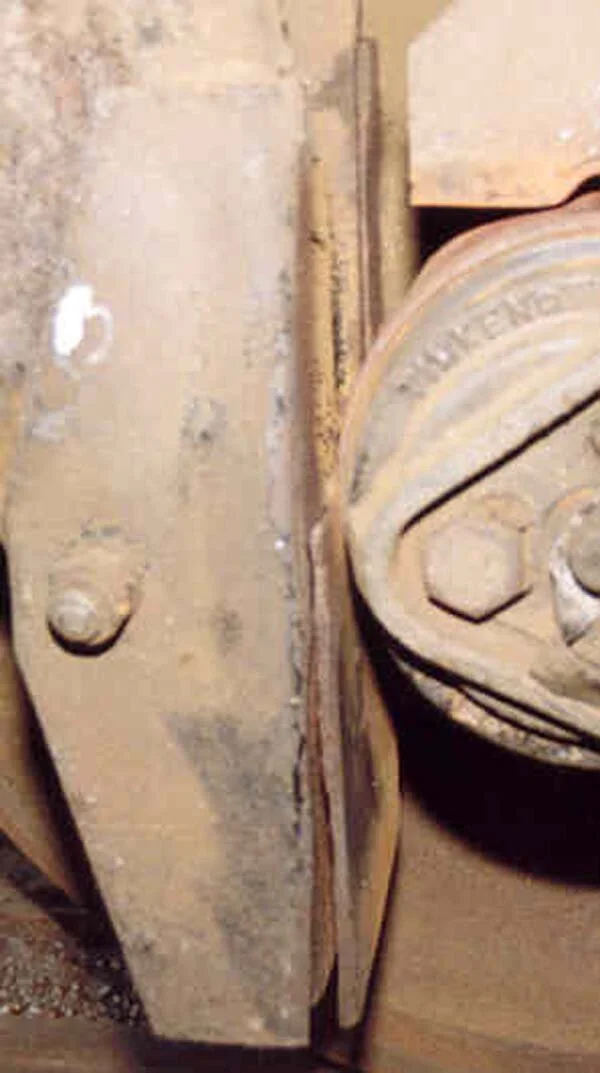

Cracked pedestal liner
View fullsize
Cracked side brng brkt w excess clearance
View fullsize
Crash damage, ouch!
View fullsize
Crash damage
View fullsize
More crash damage
View fullsize

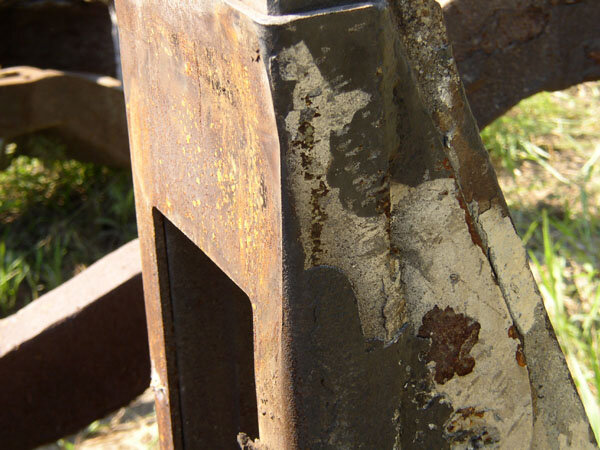

Crashpost rust
View fullsize
Wheel damage by worn brake shoe
View fullsize
Damaged fixed jumper control loop wire
View fullsize
Dented air reservoir
View fullsize
Displaced and non-locking cut lever
View fullsize
Equalizer hitting and damaged by pedestal
View fullsize
Equalizer shims damaged and worn seat
View fullsize
Equalizers spread and metal shims loose
View fullsize
Bad flange & profile
View fullsize
Handbrake lever brkt and mounting rusted
View fullsize

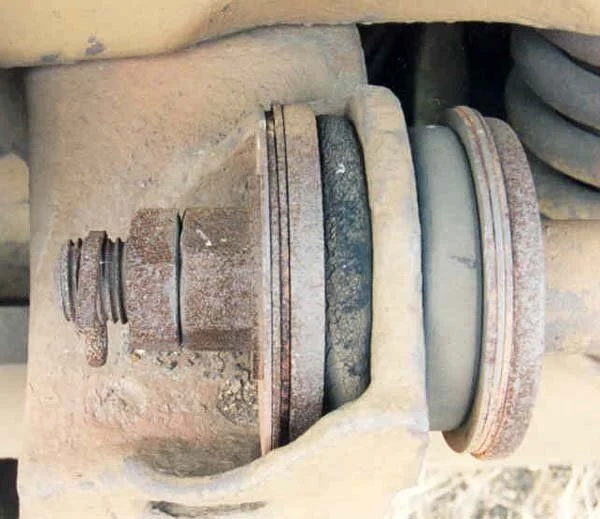

Loose bolster anchor rubber
View fullsize
Loose carrier iron bolts
View fullsize
Loose pedestal strap
View fullsize
Overlapping brake shoe with loose key
View fullsize
Over-shimmed equalizer spring
View fullsize
Poor handrail fastening pt cracked corner post
View fullsize
Rust between side sill and side sheet
View fullsize
Rust under step pads
View fullsize
Rust under car floor
View fullsize
Rusted step mounting angle and floor pan
View fullsize
Slid and over heated wheel
View fullsize
Slid wheel and brake head damage
View fullsize
Steel rust under stainless skin
View fullsize
Tightlock pocket too tight no vert clearance
View fullsize
Transformer covers missing and damaged wires
View fullsize
Unsafe and worn diaphragm wear plates
View fullsize
Vestibule and end sheet rust
View fullsize
Weak leaves and loose leaves u-bolted
View fullsize
Vestibule endsheet rust behind bondo
View fullsize
Welded coupler shank
View fullsize
Worn box lateral liners
View fullsize
Worn flange
View fullsize
Worn hollow
View fullsize
Wrong wheel taper
View fullsize
Defective bearing race
View fullsize
Coupler hitting HEP can
View fullsize
Equalizer seat over shimmed and worn box
View fullsize
Aluminum corrosion in side sheet
View fullsize
Side sheet and side sill repair
View fullsize
Budd defective side sill repair
View fullsize
Budd defective side sill repair
View fullsize
Defective weld on Budd side sill
View fullsize
Defective weld on Budd car
View fullsize
Defective weld on stainless Budd car
View fullsize
Defective stainless steel repair on Budd car
View fullsize
Cracks in stainless barrel under dome
View fullsize
Do not put a trap in A/C condensate drain, water will freeze in trap
View fullsize
Bad bolster anchor rod sleeve and rubber
View fullsize
Worn brake head
View fullsize
Bad side sill
View fullsize
Bad side sill
View fullsize
Bent bolster anchor rod
View fullsize
Broken bushing
View fullsize
Broken pedestal liner
View fullsize
Broken spring band and elliptical spring hitting equalizer
View fullsize
Collapsed coil spring
View fullsize
Cracked center plate
View fullsize
Cracked center plate
View fullsize
Cracked pedestal liner
View fullsize
Rust damage to close to brake wheel, can cause injury
View fullsize
Spreading bolt on elliptical spring
View fullsize
Elliptical spring hitting and wearing equalizer
View fullsize
Galvanized water pipe on air system
View fullsize
Hand brake cable eye corroded
View fullsize
Missing pedestal bolt
View fullsize
Rusted & broken coil springs
View fullsize
Side sill failure
View fullsize
Rusted steps about to fall off
View fullsize
Swing hanger wearing into spring plank
View fullsize
Swing hanger worn into spring plank
View fullsize
Too much seal tight
View fullsize
Worn brake head
View fullsize
Worn equalizers
View fullsize
Worn pedestal liner
